Runge-Kutta 4th order method

Runge-Kutta 4th order公式

在各種Runge-Kutta法當中有一個方法十分常用，以至於經常被稱為「RK4」。該方法主要是在已知方程導數和初值信息，利用計算機模擬時應用，省去求解微分方程的複雜過程。
微分方程：\[ \frac{dx}{dt}=f(x(t),t) \] Euler method: \[ x(t+\tau)=x(t)+\tau f(x(t),t) \] RK2 method: \[ x(t+\tau)=x(t)+\tau \textstyle f(x^*(t+\frac{1}{2}\tau),t+\frac{1}{2}\tau) \] \[ x^*(t+\textstyle\frac{1}{2}\tau)=x(t)+\frac{1}{2}\tau f(x(t),t) \] RK4 method: \[ x(t+\tau)=x(t)+\textstyle \frac{1}{6}\tau[F_1 + 2F_2 + 2F_3 + F_4] \] \[F_1=f(x,t) \] \[F_2=f(x+\textstyle \frac{1}{2}\tau F_1,t+\frac{1}{2}\tau) \] \[F_3=f(x+\textstyle \frac{1}{2}\tau F_2,t+\frac{1}{2}\tau) \] \[F_4=f(x+\tau F_3,t+\tau) \]

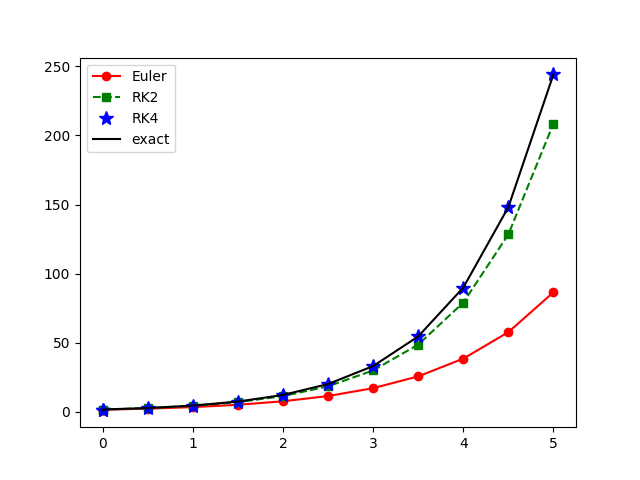

程式樣本1,單一微分方程式的RK4 method

import matplotlib
import matplotlib.pyplot as plt
matplotlib.use("Agg")
import numpy as np

def deriv(t,x):
    f=x
    return f

def exact(t):
    x=np.exp(t)
    return x

N=10
a,b=0.,5.
dt=(b-a)/N
t,x1,x2,x3=a,1.,1.,1.
xe=exact(t)
tp=[t]; x1p=[x1]; x2p=[x2]; x3p=[x3]; xep=[xe]
for i in range(N+1):
    xe=exact(t)
    print ('%6.3f %12.7f %12.7f %12.7f %12.7f' %(t,x1,x2,x3,xe))
    #------Euler
    x1+=deriv(t,x1)*dt
    #-------RK2
    ts=t+0.5*dt
    xs=x2+0.5*dt*deriv(t,x2)
    x2+=deriv(ts,xs)*dt
    #-------RK4
    ts=t+0.5*dt
    F1=deriv(t,x3)
    F2=deriv(ts,x3+0.5*dt*F1)
    F3=deriv(ts,x3+0.5*dt*F2)
    F4=deriv(t+dt,x3+dt*F3)
    x3+=(1./6.)*dt*(F1+2.*F2+2.*F3+F4)
    tp.append(t)
    x1p.append(x1)
    x2p.append(x2)
    x3p.append(x3)
    xep.append(xe)
    t+=dt
plt.plot(tp,x1p,'r-o',label='Euler')
plt.plot(tp,x2p,'g--s',label='RK2')
plt.plot(tp,x3p,'b*',ms=10,label='RK4',)
plt.plot(tp,x3p,'k-',label='exact')
plt.title(r"$\frac{dx}{dt}=x$")
plt.legend()
plt.savefig("RK4-1.png")
plt.close()

RK4在軌道運動中的應用

在軌道運動中的RK4方程式

軌道運動中任何時刻(t)都有四個基本的運動變數，我們就用一個\(\vec{s}(t)\)向量來表示這四個物理量 \[ \vec{s}=(x, y, v_x, v_y),\] \(\vec{D}(t)\)代表\(\vec{S}\)的導函數, \[ \vec{D}=(x', y', v'_x, v'_y)=(v_x, v_y, a_x, a_y)\] 在軌道運動中的RK4方程式: \[ \vec{s}(t+\tau)=\vec{s}(t)+\textstyle \frac{1}{6}\tau[\vec{F}_1 + 2\vec{F}_2 + 2\vec{F}_3 + \vec{F}_4] \] \[\vec{F}_1=\vec{D}(\vec{s},t) \] \[\vec{F}_2=\vec{D}(\vec{s}+\textstyle \frac{1}{2}\tau \vec{F}_1,t+\frac{1}{2}\tau) \] \[\vec{F}_3=\vec{D}\vec{s}+\textstyle \frac{1}{2}\tau \vec{F}_2,t+\frac{1}{2}\tau) \] \[\vec{F}_4=\vec{D}\vec{s}+\tau \vec{F}_3,t+\tau) \]

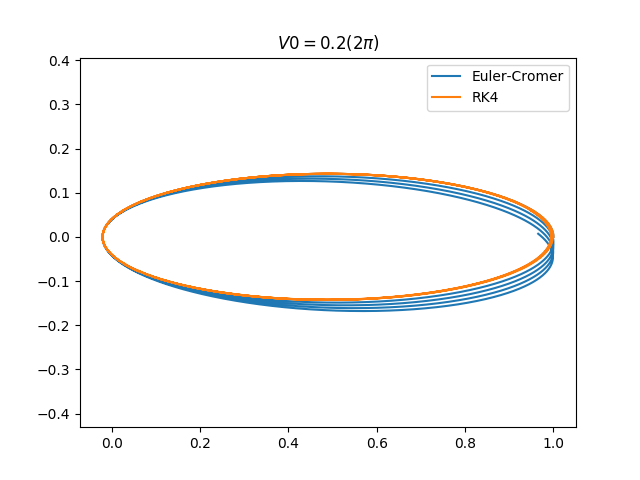

程式樣本2,行星運動(RK4 method)

import matplotlib
import matplotlib.pyplot as plt
matplotlib.use("Agg")
import numpy as np

def gravrk(s,t,GM):
    r = np.array([s[0], s[1]])
    v = np.array([s[2], s[3]])
    accel = -GM*r/np.linalg.norm(r)**3    # Gravitational acceleration
    deriv = np.array([v[0], v[1], accel[0], accel[1]])
    return deriv

def rk4(x,t,tau,derivsRK,param):
    half_tau = 0.5*tau
    F1 = derivsRK(x,t,param)
    t_half = t + half_tau
    xtemp = x + half_tau*F1
    F2 = derivsRK(xtemp,t_half,param)
    xtemp = x + half_tau*F2
    F3 = derivsRK(xtemp,t_half,param)
    t_full = t + tau
    xtemp = x + tau*F3
    F4 = derivsRK(xtemp,t_full,param)
    xout = x + tau/6.*(F1 + F4 + 2.*(F2+F3))
    return xout

m=1.0; GM=4.*np.pi**2
R0=1.; V0=np.pi*2.0*0.2

r1=np.array([R0,0.])
v1=np.array([0., V0])
r1n=np.linalg.norm(r1)
a1=np.array([-GM/r1n**3*r1[0],-GM/r1n**3*r1[1]])
xp1=[r1[0]]; yp1=[r1[1]]

r2=np.array([R0,0.])
v2=np.array([0., V0*1.])
r2n=np.linalg.norm(r2)
a2=np.array([-GM/r2n**3*r2[0],-GM/r2n**3*r2[1]])
xp2=[r2[0]]; yp2=[r2[1]]

t=0.; dt=0.0001; dt2=dt/2.
tp=[t]
while t < 1.5:
    #print '%10.5f'*7 %(t,r1[0],r1[1],r2[0],r2[1],r1n,r2n)
    v1n=np.linalg.norm(v1)
    r1n=np.linalg.norm(r1)
    a1=np.array([-GM/r1n**3*r1[0],-GM/r1n**3*r1[1]])
    #r1+=v1*dt
    v1+=a1*dt
    r1+=v1*dt

    state=np.array([r2[0],r2[1],v2[0],v2[1]])
    state = rk4(state,t,dt,gravrk,GM)
    r2[0]=state[0]
    r2[1]=state[1]
    v2[0]=state[2]
    v2[1]=state[3]

    t+=dt
    tp.append(t)
    xp1.append(r1[0]); yp1.append(r1[1])
    xp2.append(r2[0]); yp2.append(r2[1])
plt.plot(xp1,yp1, label="Euler-Cromer")
plt.axis('equal')
plt.plot(xp2,yp2, label="RK4")
plt.title(r"$V0=0.2(2\pi)$")
plt.legend()
plt.savefig("RK4-2.png")
plt.close()

程式樣本3,VPYTHON行星運動模擬(RK4 method)

from visual import *
import numpy as np
import matplotlib.pyplot as plt

#* Define the gravrk function used by the Runge-Kutta routines
def gravrk(s,t,GM):
    r = np.array([s[0], s[1]])
    v = np.array([s[2], s[3]])
    accel = -GM*r/np.linalg.norm(r)**3    # Gravitational acceleration
    deriv = np.array([v[0], v[1], accel[0], accel[1]])
    return deriv

def Euler(x,t,tau,derivsRK,param):
    F1 = derivsRK(x,t,param)
    xout = x + tau*F1
    return xout

def rk4(x,t,tau,derivsRK,param):
    half_tau = 0.5*tau
    F1 = derivsRK(x,t,param)
    t_half = t + half_tau
    xtemp = x + half_tau*F1
    F2 = derivsRK(xtemp,t_half,param)
    xtemp = x + half_tau*F2
    F3 = derivsRK(xtemp,t_half,param)
    t_full = t + tau
    xtemp = x + tau*F3
    F4 = derivsRK(xtemp,t_full,param)
    xout = x + tau/6.*(F1 + F4 + 2.*(F2+F3))
    return xout

x0=1.; v0=1.0; G=1.; Ms=4.*pi**2; GM=G*Ms
scene = display(width=800, height=800, center=(0, 0, 0),
                background=(0.5,0.5,0))
planet=sphere(pos=(x0,0,0),radius =0.05,color=(0,0,0),
         make_trail=True, trail_type="points", interval=1, retain=100)
sun=sphere(pos=(0,0,0),radius =0.02,color=(1,1,0))

from visual.graph import *	# import graphing features
gd = gdisplay(x=800,y=0,width=600, height=600,
      title='y(x) as a solution of ODE: dx/dt=x', xtitle='t', ytitle='x',
      foreground=color.black, background=color.white
      ,xmin=-1, xmax=1, ymin=-1, ymax=1)
f = gdots(gdisplay=gd,color=color.black)

planet.v=vector(0,v0*pi,0.)

dt=0.001; dt2=dt/2.
t=0.
while True:
    if(t > 1.7): break
    rate(int(1./dt)/5)
    f.plot(pos=(planet.x,planet.y))


    state = np.array([ planet.pos.x, planet.pos.y, planet.v.x, planet.v.y ])
    #----Euler
    #state = Euler(state,t,dt,gravrk,GM)
    #----RK4
    state = rk4(state,t,dt,gravrk,GM)
    planet.pos.x=state[0]
    planet.pos.y=state[1]
    planet.v.x=state[2]
    planet.v.y=state[3]

    t=t+dt

4個數值方法之比較

程式樣本4,4個數值方法之比較

from visual import *
import numpy as np
import matplotlib.pyplot as plt

#* Define the gravrk function used by the Runge-Kutta routines
def gravrk(s,t,GM):
    r = np.array([s[0], s[1]])  # Unravel the vector s into position and velocity
    v = np.array([s[2], s[3]])
    accel = -GM*r/np.linalg.norm(r)**3    # Gravitational acceleration
    deriv = np.array([v[0], v[1], accel[0], accel[1]])
    return deriv

def rk2(x,t,tau,derivsRK,param):
    half_tau = 0.5*tau
    F1 = derivsRK(x,t,param)
    xtemp=x+half_tau*F1
    t_half = t + half_tau
    F2=derivsRK(xtemp,t_half,param)
    xout = x + tau*F2
    return xout

def rk4(x,t,tau,derivsRK,param):
    half_tau = 0.5*tau
    F1 = derivsRK(x,t,param)
    t_half = t + half_tau
    xtemp = x + half_tau*F1
    F2 = derivsRK(xtemp,t_half,param)
    xtemp = x + half_tau*F2
    F3 = derivsRK(xtemp,t_half,param)
    t_full = t + tau
    xtemp = x + tau*F3
    F4 = derivsRK(xtemp,t_full,param)
    xout = x + tau/6.*(F1 + F4 + 2.*(F2+F3))
    return xout


x0=1.; v0=1.0; G=1.; Ms=4.*pi**2; GM=G*Ms
scene = display(width=800, height=800, center=(0, 0, 0),
                background=(0.5,0.5,0))
planet1=sphere(pos=(x0,0,0),radius =0.05,color=(1,0,0),
              make_trail=True)
planet2=sphere(pos=(x0,0,0),radius =0.05,color=(0,1,0),
              make_trail=True)
planet3=sphere(pos=(x0,0,0),radius =0.05,color=(0,0,1),
              make_trail=True,trail_type="points", interval=1, retain=100)
planet4=sphere(pos=(x0,0,0),radius =0.05,color=(0,0,0),
    make_trail=True,trail_type="points", interval=1, retain=50)
sun=sphere(pos=(0,0,0),radius =0.02,color=(1,1,0))

from visual.graph import *	# import graphing features
gd = gdisplay(x=800,y=0,width=600, height=600,
      title='y(x) as a solution of ODE: dx/dt=x', xtitle='t', ytitle='x',
      foreground=color.black, background=color.white
      ,xmin=-1, xmax=1, ymin=-1, ymax=1)
f1 = gcurve(gdisplay=gd,color=color.red)	# a graphics curve
f2 = gdots(gdisplay=gd,color=color.green)
f3 = gdots(gdisplay=gd,color=color.blue)
f4 = gdots(gdisplay=gd,color=color.black)

planet1.v=vector(0,v0*pi,0.)
planet2.v=vector(0,v0*pi,0.)
planet3.v=vector(0,v0*pi,0.)
planet4.v=vector(0,v0*pi,0.)
dt=0.002; dt2=dt/2.
t=0.
while True:
    if(t > 1.7): break
    rate(int(1./dt)/10)
    f1.plot(pos=(planet1.x,planet1.y))
    f2.plot(pos=(planet2.x,planet2.y))
    f3.plot(pos=(planet3.x,planet3.y))
    f4.plot(pos=(planet4.x,planet4.y))
    #-----Euler
    planet1.a=-G*Ms/(abs(planet1.pos)**3)*planet1.pos
    v0=1.*planet1.v
    planet1.v+=planet1.a*dt
    if(abs(planet1.pos)<1.2): planet1.pos+=v0*dt

    #-----Euler-Cromer
    planet2.a=-G*Ms/(abs(planet2.pos)**3)*planet2.pos
    planet2.v+=planet2.a*dt
    planet2.pos+=planet2.v*dt

    #----RK4

    state = np.array([ planet3.pos.x, planet3.pos.y, planet3.v.x, planet3.v.y ])
    state = rk4(state,t,dt,gravrk,GM)
    planet3.pos.x=state[0]
    planet3.pos.y=state[1]
    planet3.v.x=state[2]
    planet3.v.y=state[3]

    #----RK2
    #a1=-G*Ms/(abs(planet3.pos)**3)*planet3.pos
    #rs=planet3.pos+planet3.v*dt2
    #vs=planet3.v-a1*dt2
    #am=-G*Ms/(abs(rs)**3)*rs
    #planet3.pos+=planet3.v*dt
    #planet3.v+=am*dt
    state = np.array([ planet4.pos.x, planet4.pos.y, planet4.v.x, planet4.v.y ])
    state = rk2(state,t,dt,gravrk,GM)
    planet4.pos.x=state[0]
    planet4.pos.y=state[1]
    planet4.v.x=state[2]
    planet4.v.y=state[3]

    t=t+dt
